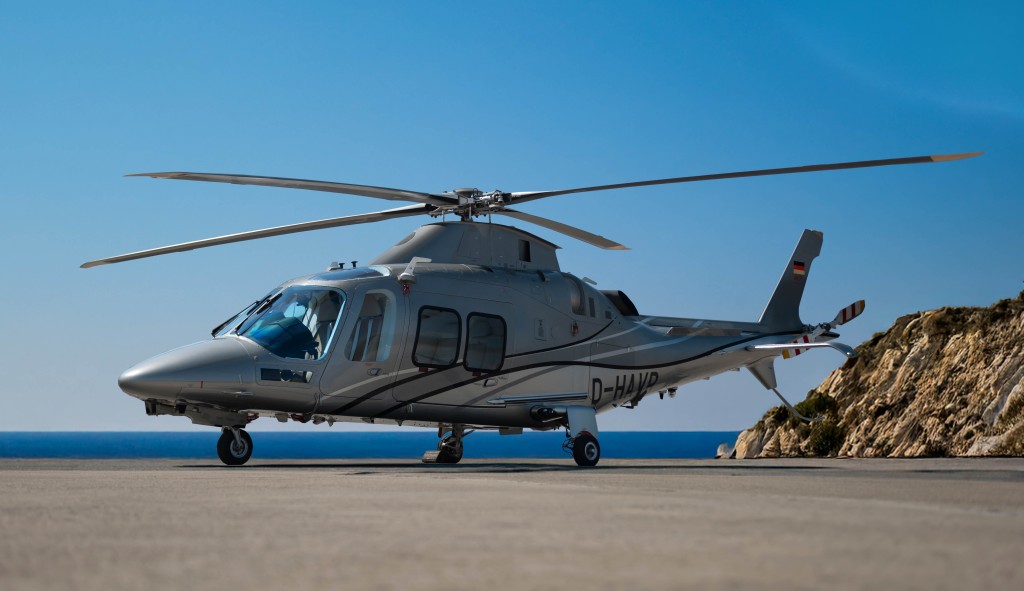

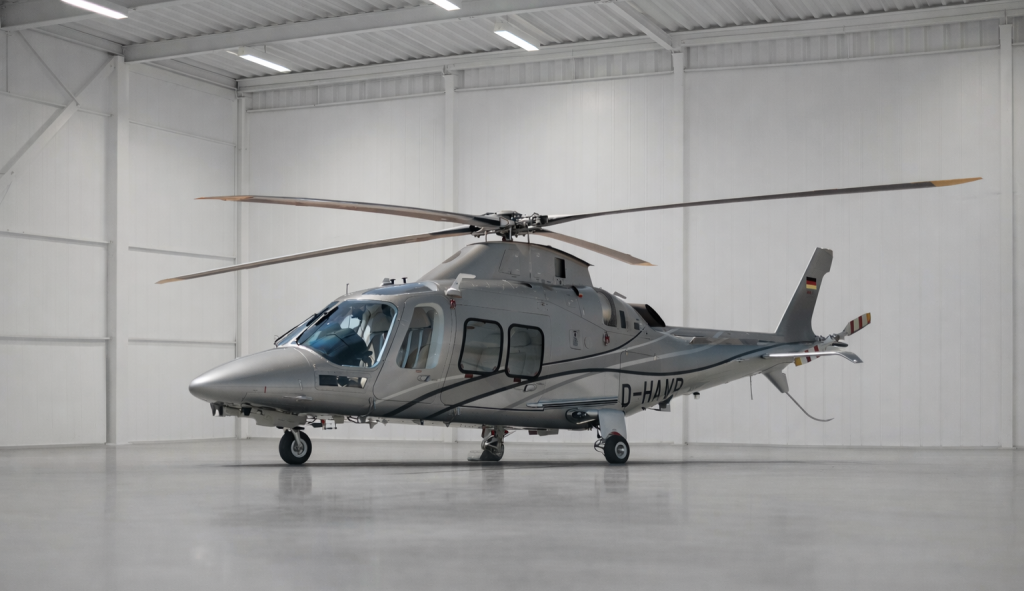

PRESENTED BY JETY - THE REFINED 2020 LEONARDO AW109 GRANDNEW:
Offered directly from stock by the largest distributor of Leonardo Helicopters, this immaculate 2020 AW109 GrandNew is available for immediate sale. With just 77 flight hours, it represents a rare opportunity to acquire a virtually new aircraft. Designed for both performance and luxury, this GrandNew is equipped with increased capacity fuel tanks, an extended baggage compartment, and provisions for emergency floats, further enhancing its versatility. The 6-passenger VIP cabin is crafted with the finest leather and bespoke finishes, ensuring an exceptional travel experience.
Your contact
Matúš Letko
vp@jety.com
+44-7444-015654
+44-7444-015654
HIGHLIGHTS
- IN-STOCK FROM LARGEST LEONARDO DISTRIBUTOR
- 2020 HELICOPTER WITH 77 HRS
- 6 PAX VIP CONFIGURATION
- EASA COMPLIANT
- COMPATIBLE TO OPERATE FROM A YACHT
- ADVANCED SINGLE/DUAL PILOT IFR AVIONICS PACKAGE
- EMERGENCY FLOATS AND ENGINE WASHING KIT PROVISION
- INCREASED CAPACITY 5-CELL (213 US GAL) FUEL TANKS
AIRFRAME
| Entry Into Service: | 2020 |
| Total Time Since New: | 77 hrs |
| Total Landings Since New: | 203 |
| Certification: | EASA compliant |
ENGINES
| Manufacturer: | Pratt & Whitney Canada |
| Model: | Canada PW207C |
| Total Time Since New: | 77 hrs |
| Total Cycles Since New: | 203 |
Floor Plan
INTERIOR
| Number of Passengers: | 6 VIP configuration |
| Air-condition: | Yes |
| Baggage Load Capacity: | Baggage compartment extension (2.3 m) |
| Soundproofing: | Super silent soundproofing |
| Headsets: | Bose ANR (Qty 6) |
| Other Notable Features: | All seats covered with leather, customised cabin finishing |
NAVIGATION & COMPLIANCE
| Maps: | Digital map Euronav VII Euroavionics |
| Weather Radar: | RDR 2000 Bendix/King |
| TCAS 7.1: | Traffic Advisory System TAS-620 Avydine |
| Display: | 8.4" cockpit central display |
EXTERIOR
| Custom painting: | Primer silver exterior painting |
AVIONICS
| EFIS (Electronic Flight Instrument System): | Double with 4 displays |
| FMS (Flight Management System): | Yes |
| GPS (Global Positioning System): | GPS/SBAS Chelton |
| NAV (Navigation Radio): | VOR/ILS/ADF NAV-4000 Collins |
| DME (Distance Measuring Equipment): | DME-4000 Collins |
| ELT (Emergency Location Transmitter): | C406-N HM Artex |
| AFCS (Auto Flight Control System): | 4-axis dual duplex digital AFCS |
| XPNDR (Transponder): | Mode S TDR-94 Collins |
| EVS (Enhanced Vision System): | EVS-2300 Max-Viz |
| AHRS: | Dual |
| Air Data Unit: | Dual |
| HTAWS: | With slip indicator and Remote Bug Panel |
